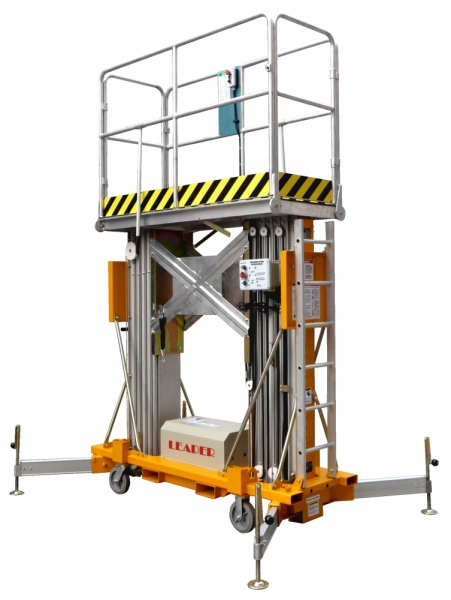

APD Series

INTRODUCTION



Leader APD Series are designed to meet and exceed ANSI A-92.3, CAS, CE Safety Standard. APD Series provides great accessibility, ease of control which could be ideal aerial lift for all aerial assignments.





EXTRAORDINARY FEATURES



  • Enlarged platform size to provide ample space for working with one or two person, as well as to carry more tools to increase work efficiency.
  • Highest Working Height of 16.5m.
  • Greatest Load Capacity of 340kg.
  • Compact size for rolling through standard single doorway easily. APD 25, 30, 35 and 40 with a stowed height of only 1.98m.
  • Non scratch and Swivel – Lock Castors provide the highest accessibility and safety while moving the machines indoor and outdoor.
  • Double Rigid Mast produced by extra strength aluminium material with a safety factor greater than 10:1.
  • Compact design with user friendly system that provide easily handling jobs.
  • Ground Control LED Light Box to indicate 4 individual outriggers installed properly before using. Platform can be lowered down from Ground Control Box. Locking Key System to prevent unauthorized use.
  • The manual valve can be operating without electricity circumstances.
