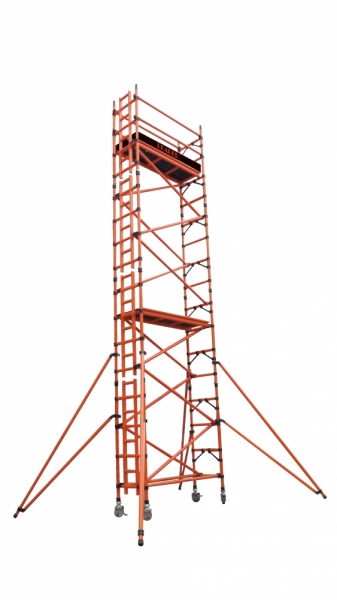

Fiberglass Mobile Scaffold Towers

INTRODUCTION



Leader Fiberglass Mobile Scaffold Tower are fabricated and constructed with extraordinary unique patented Anti-Fall Joint Design. The unique joint design entirely eliminate the problem of using unsecured adhesive binding joints in conventional GRP Towers and totally avoid disconnection of joints thus ensuring highest safety and best rigid structure among the insulation scaffolds ever existing.



Structural components made by fiberglass reinforce nylon material with high yield stress and strain to resist strong impact force. Reinforce nylon materials which are Non-Conductive, Corrosive Resistance, Anti-Oxidizing, Non-Sparking, High Strength, High Rigidity and Durable.







EXTRAORDINARY FEATURES



Single Width Tower



  • Suitable for working in Limited Space.
  • Option to be equipped with vertical or incline ladders and clip on ladders.
  • Compact design easily pass through normal doors or pedestrian access.
  • Light, solid & compact size, easy assemble & dismantle, easy loading by small trucks.



DIMENSIONS
Width: 0.75m / 0.85m
Length: 2.0m / 2.5m



500

SERIES

Working height

4.1

4.6

5.1

6.1

6.6

7.1

7.6

8.2

8.7

9.2

10.2

10.7

11.2

11.7

12.2

12.7

13.2

13.7

Platform Height

2.1

2.6

3.1

4.1

4.6

5.1

5.6

6.2

6.7

7.2

8.2

8.7

9.2

9.7

10.2

10.7

11.2

11.7

460

SERIES

Working height

4.23

4.81

5.27

5.73

6.20

6.66

7.13

7.59

8.05

8.52

8.98

9.45

9.91

10.37

10.84

11.30

11.77

12.23

Platform Height

2.23

2.81

3.27

3.73

4.20

4.66

5.13

5.59

6.05

6.52

6.98

7.45

7.91

8.37

8.84

9.30

9.77

10.23





Double Width Tower

  • Suitable for construction and industrial use.
  • Vertical ladder structure provides maximum work space and reduces the erection time.
  • Proper combination of design with greater flexibility to improve utilization efficiency.



DIMENSIONS
Width: 1.35m / 1.45m
Length: 2.0m / 2.5m



500

SERIES

Working height

4.1

4.6

5.1

6.1

6.6

7.1

7.6

8.2

8.7

9.2

10.2

10.7

11.2

11.7

12.2

12.7

13.2

13.7

Platform Height

2.1

2.6

3.1

4.1

4.6

5.1

5.6

6.2

6.7

7.2

8.2

8.7

9.2

9.7

10.2

10.7

11.2

11.7

460

SERIES

Working height

4.23

4.81

5.27

5.73

6.20

6.66

7.13

7.59

8.05

8.52

8.98

9.45

9.91

10.37

10.84

11.30

11.77

12.23

Platform Height

2.23

2.81

3.27

3.73

4.20

4.66

5.13

5.59

6.05

6.52

6.98

7.45

7.91

8.37

8.84

9.30

9.77

10.23





Quick-Fold Base Frames (Option)

Quick-Fold base frame available to minimize installation time, base frame can be installed quickly with simplest pull out ready design.



DIMENSIONS
Width: 0.75m / 1.35m / 1.45m

Platform Height matches with 500 / 460 Series
